Hydronic heating and boiler systems
|
Hydronic heating and boiler systems
For new installations or conversions
|

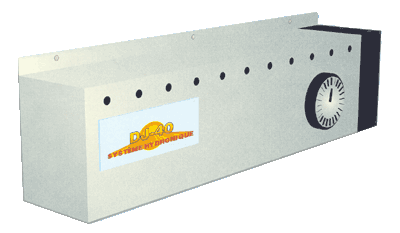

The DJ-40 electrical
hot water furnace was developed to respond to a growing demand for
radiant flooring or to convert old oil or gas systems in homes and
office buildings.
|
-
Technical data
| 30 LBS security valve automatic vent |
|
 |
pressure and temperature control
immersion thermostat
|
|
|
kw
|
BTU
|
Voltage
|
Phase
|
Total amperes
|
|
DJ-40 C5
|
5
|
17 065
|
240
|
1
|
20
|
|
DJ-40 C6
|
6
|
20 478
|
240
|
1
|
24
|
|
DJ-40 C8
|
8
|
27 304
|
240
|
1
|
33
|
|
DJ-40 C10
|
10
|
34 130
|
240
|
1
|
40
|
|
DJ-40 C12
|
12
|
40 956
|
240
|
1
|
48
|
|
DJ-40 C15
|
15
|
51 195
|
240
|
1
|
63
|
|
DJ-40 C18
|
18
|
61 434
|
240
|
1
|
72
|
|
DJ-40 C20
|
20
|
68 260
|
240
|
1
|
83
|
|
DJ-40 C22
|
22
|
75 086
|
240
|
1
|
88
|
|
DJ-40 C24
|
24
|
81 912
|
240
|
1
|
100
|
| Characteristics |
- Boiler with isolated cabinet
- Pressure and temperature control
- Security valve
- Operational mechanical limit control (adjustable Aquastat)
- Drain valve
- Binging screw for circulating pump and thermostat
- 10-year warranty on boiler, 1 year on electrical parts
- Uses a 60 C standard conductor for power supply
- Licensed
Subject to change without notice
|
|
